Quick Details

  • Type: car diagnostic tool
  • Voltage: 9-15V
  • Power: W
  • Certification: CE
  • Applicable Models: Acura, Changan, Daweoo, Gaz, Hafei, Huachen, Jiao, Lexus, Xiali, Xinkai, Benz, Fiat, Holden, Maruti, Opel, Peugeot, Saab, Ssangyong, Tata, Changhe, Flyer, GMSA, Infiniti, Mahindra, Perodua, Proton, Qirui, Tlisuzu, Zhongshun, EOBD2, Euroford, GM, Jagar, Renault, Smart, Sprinter, USA Ford, VAZ, VW, Changcheng, Dacia, Ford, HaoQing, Jinlong, Liuwei, Rover, ZhongTai, ZhongXing, Bxfiat, HM, Isuzu, Jacty, JPIsuzu, Mazda, Seat, Skoda, Suzuki, for BMW, Daihatsu, Mitsubishi, Porsch, Toyota, Volvo, Audi, Chrysler, Citroen, Hyundai, Kia, Lancia, Landrover, Nissan, Romeo and Subaru.
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Launch
  • Model Number: X431 V+
  • Warranty: 1 Years
  • Named: launch x431 V+
  • X431 Software update: update online
  • Diagnosis cars' model: USA, European and Asian cars
  • langauge.: Muiti-languages
  • System: Android system
  • Advantage: substitutes X431 IV and X431 Diagun III
  • Advantage 2: Test in cars fault diagnostic technology
  • Advantage 3: Accurate test data
  • Conection: Wi-Fi and Bluetooth
  • Panel PC: High Configuration of hardware

Packaging & Delivery

Packaging Details: Box.
Delivery Detail: Shipped in 3 days after payment



 Hot Sale Install software by wifi Global Version Launch X431 V+ scanner tool updated from x431 ivi







Product Description

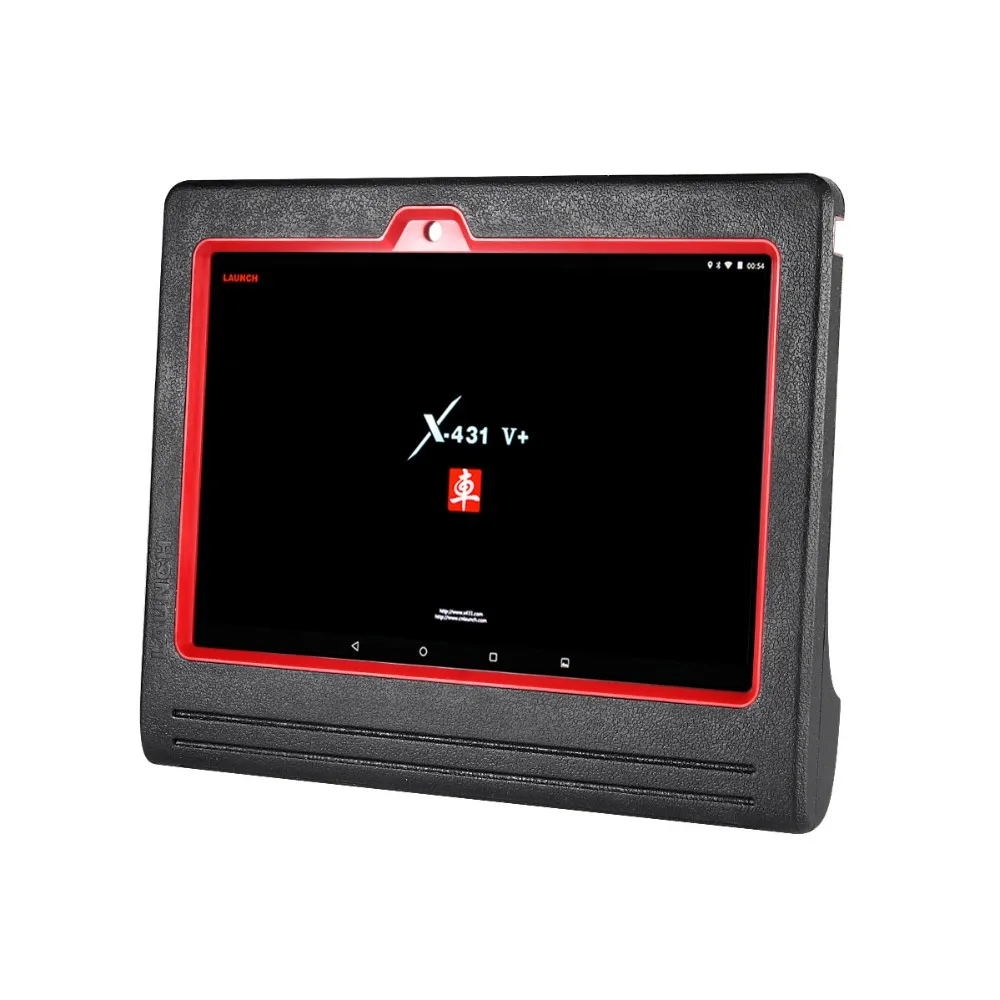

X-431 V+ Description:


Launch X431 V+ with Bluetooth/Wifi based on Android system, is a new car malfunction diagnostic device developed by Launch Tech for internet application. X-431 V completely substitutes X431 IV and X431 Diagun III. It passes on Launch advantages in car fault diagnostic technology, such as vast car model coverage, powerful test function, special function and accurate tast data, etc.,  X-431 V achieves the full car model and full system fault diagnosis through the bluetoooth communication between DBSCar connector and intelligent mobile terminal. X-431 V taking the advantage of mobile internet, can share maintenance data and case library, provide instant maintenance information, and build public and private maintenance social circle,etc.,thus lead to wide car diagnostic community.
It is a typical diagnostic device contributed by Launch to diagnostic industry concerning internet application.
  • High-level configuration
  • Powerful diagnostic ability
  • Wireless diagnosis function
  • Android operation system
  • One clink online update



Launch X-431 V+ sopport one click online update, support full range car model from USA, European and Asian. multi langauge.



Launch X-431 V+ Wifi/Bluetooth Tablet Full System Diagnostic Tool

Highlights:

1. Supported Languages: English, German, French, Italian, Spanish, Portuguese, Polish, Russian, Japanese, Traditional Chinese
2. Wi-Fi: Supported

3. Bluetooth: Supported
4. Dealer Code: 86A
5. Easy to Update: Online update, Support Online one-click update, no need to update the software to CF Card.



X-431 V+ Product Features:

Panel PC: High configuration of hardware , fast running speed
Capacitor Screen: Multi-touch capacitor screen, more smooth operation
WIFI Diagnosis: Wireless communication between intelligent mobile terminal and DBSCar connector via Bluetooth
Portable: Reasonable PDA design, small size for easy carry
Optimized Interface: Brand new operation interface design, interface more friendly and operation much easier
Wifi communication: Support WIFI network
Android System: Users can install and Android software
Numerous Additional Functions: Photo, video, multimedia, other software application,etc.
One click update: You do not have to download software to memory card anymore, can do one click update directly through your machine.


X-431 V+ Product Parameters:



Pannel Computer Parameters:

CPU: HUAWEI HiSilicon Quod-core 1.2G HZ

Screen:10.1 inch Multi touch capacitor Screen

Screen Resolution:1280X800

Operation system:Android4.0

Memory:1G

Storage:8GB

Battery:Polymer Lithium-ion battery, 6600mAh

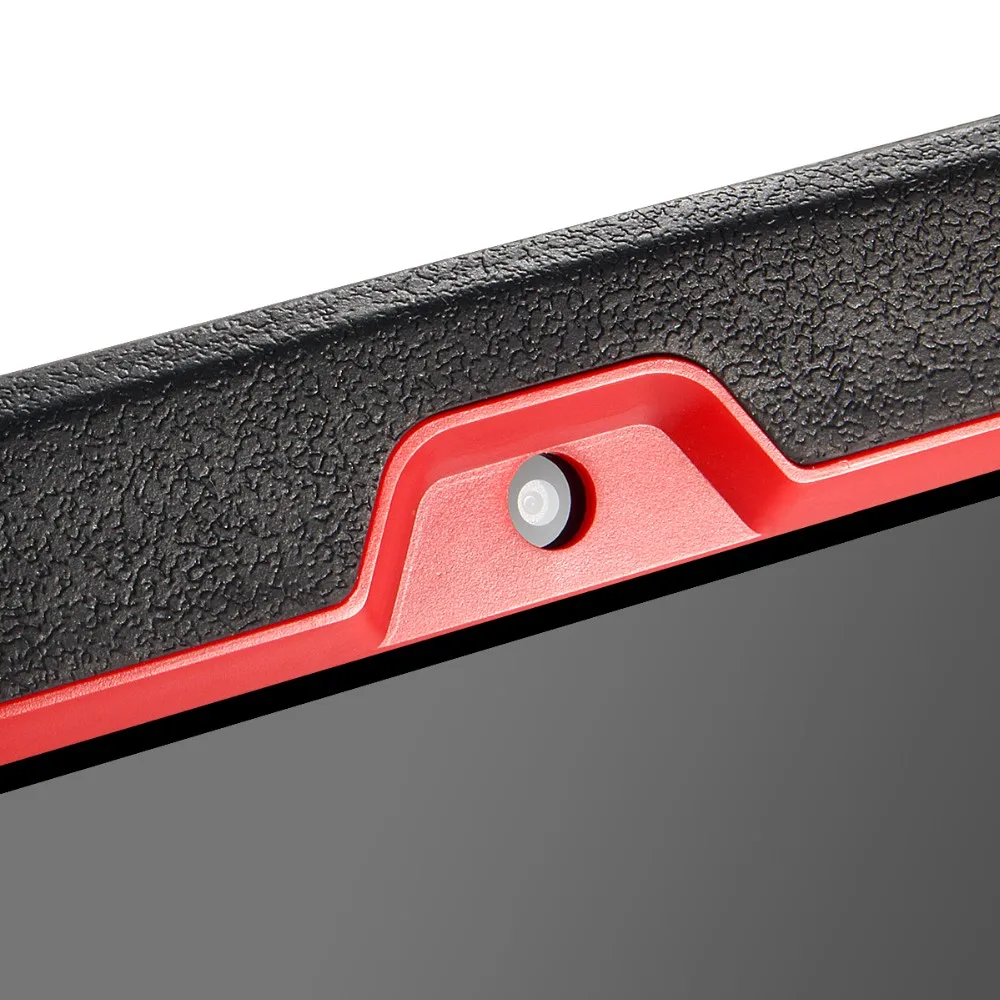

Camera :0.3M pixels front , rear 3.2M pixels

Operating Temperature :0°C~+45°C

Storage Temperature :-10°C~+45°C


DBSCar Connector Parameters:


Connection: Standard OBDII Interface, Micro USB 2.0

Typical Power Consumption:(12V)Static current 25 mA,

overall unit average current 35 mA

Working Temperature: - 20 °C~6 0°C

Storage Temperature: -30°C~70°C

Dimension: L * W * H = 48 mm * 24 mm * 32 mm

Unit Weight: 26 g

Working Voltage: powered by vehicle battery, DC 9V-15V

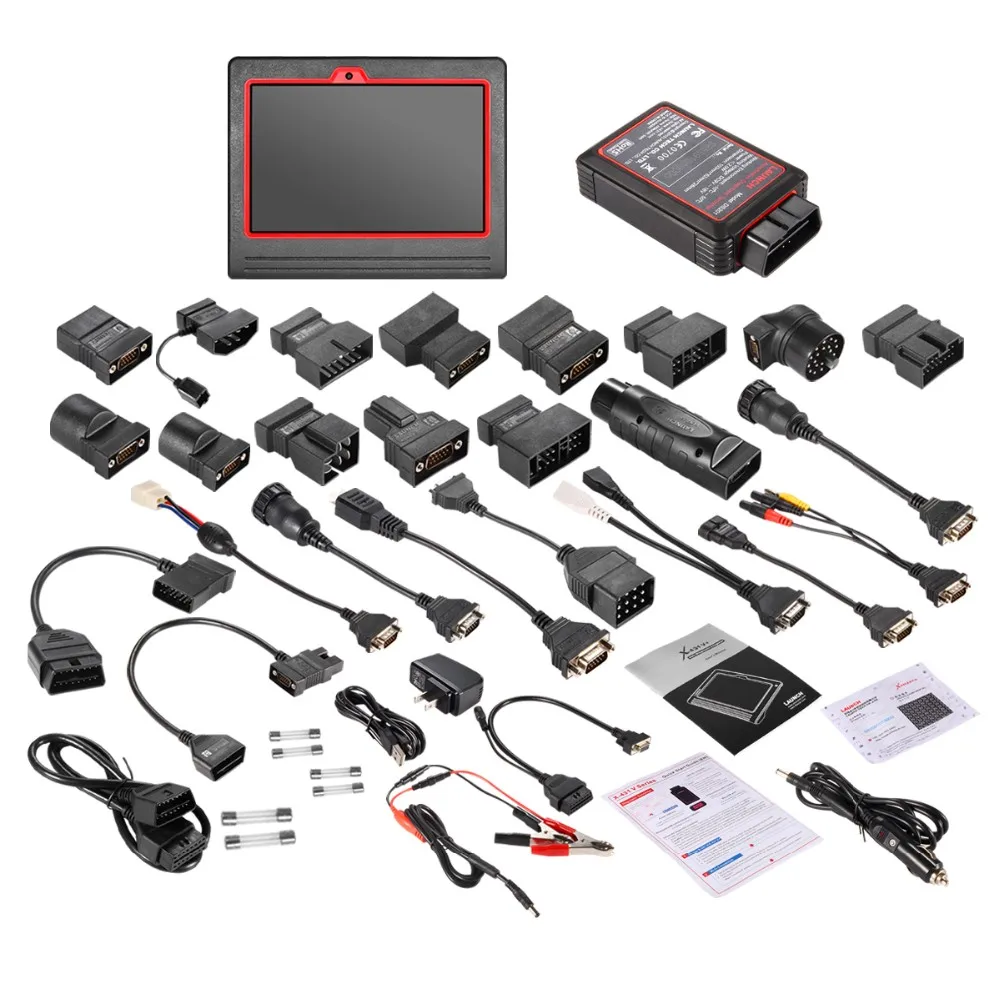

Packing List:
1. X-431 V pad computer
2. Password envelope
3. X-431 v protection sleeve
4. DBScar diagnostic connector
5. OBD II extension cable
6. Cigarette lighter cable
7. Power adaptor
8. USB data cable
9. Non-16pin connector


Contact Way



Skype:Crystal Xiao DRSOBD
QQ:645743570
Whatsapp: +86 18664321227
Wechat:xf18627494771
Trademanger:cn1517793090mdwl


Pictures

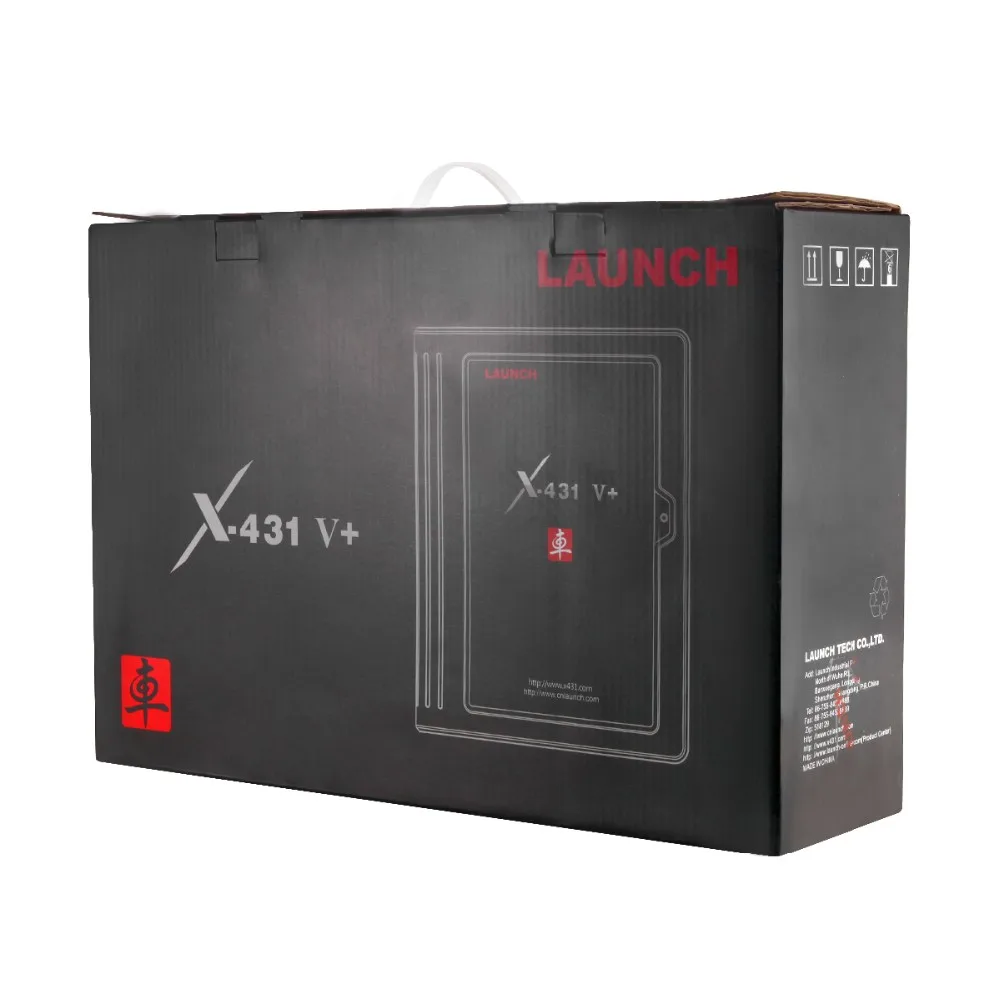

Packaging & Shipping

With our professional packing department and 5 years overseas trade business, your products will be safely shipping to you place.





For different countries and the shipment you like, these all you can choose free~





Our Services





Customer Service:
Our office hours are 24-hour-7-day on-line service
And if nobody answer you online in time sometimes,do not worry.leave us a message or write down your desires,we will contact you as soon as possible.





Company Information

Our DRS Electron Technology Co., Ltd. was established in Shenzhen at the end of 2006. Our company is professional in manufacturing and exporting various automotive electronic products and principally involved in areas of on-board diagnostics tools.  Now we have several professional departments for our business, sales department, logistics department, finance department, product department, Network technology department, human resources and art department.



Depending on these departments, we are a super company now, but we are still growing bigger and bigger. Join us!





Our professional work and professional teams made our business shinning in this market, many companies cooperating with us:






FAQ



What is Difference Between X431 V+ and X431 IV?
Difference X431 IV X431 V+
Operation SystemLinuxAndroid
ScreecLCD Touch with backlight, 240*320 7 inch Capacitive Touch
Processor72MHz 32-bit ARM7 1GHz Dual Core
Memory16M512m
Storage1 GB CF Card2 GB, extendible to 32G
Batteryno3000mAh, Engurance:4h
PrinterThermal Priterno
Diagnostic methodTest CableBluetooth / Wifi
Diagnosis

Wired diagnosis for full system,can analysis and diaply through smart therminal.



Bluetooth diagnosis, independently diagnosis full system, can analysis and diaply through smart therminal.
Diesel Vehicleyes, 12Vno
UpgradeDownload to CF CardOnline one-click upgrade
Multi Group Display24,6,12
CameraNoFront: 0.2 megapixel, Rear: 2.0 megapixel
Startup Time35s25s

Picture/Audio/

Video/Instant Chat

NoYes
Design FeatureEncapsulate design at side and bottom, anti-knock, Pwerful function,economical costTablet, Multi-touch, Customer Managent
